Phylogeny and Morphology of Sarcopodium terrigenum sp. nov., a Novel Fungal Species Isolated from Soil in Korea

Research article
Nabil Salah Elderiny1Kallol Das1Seung-Yeol Lee1,2Hee-Young Jung1,2*

Abstract

A fungal strain was isolated from a soil sample collected in Korea and designated as YW23-8. Based on a sequence analysis of the internal transcribed spacer (ITS) regions, the isolate was assigned to the genus Sarcopodium. Moreover, a phylogenetic analysis based on the concatenated nucleotide sequences of the ITS regions and the large subunit of the nuclear ribosomal RNA (LSU) gene showed that the strain YW23-8 occupies a distinct phylogenetic position within Sarcopodium. The isolate had significant differences from its closest neighbors, S. circinosetiferum, S. circinatum, S. macalpinei, and S. vanillae. Morphological features such as different conidial structures, the absence of septation in conidia, and the presence of milky white watery droplets along with the results of the phylogenetic analysis clearly distinguish YW23-8 from the closest Sarcopodium species. We therefore conclude that strain YW23-8 represents a novel species of the genus Sarcopodium for which we propose the name Sarcopodium terrigenum.

Keyword



INTRODUCTION

The genus Sarcopodium belonging to the family Nectriaceae, order Hypocreales, class Sordariomycetes, subphylum Pezizomycotina, and phylum Ascomycota, was first described in 1818, with Sarcopodium circinatum as the type species. Since then, the genus has had numerous names (obsolete synonyms: Tricholeconium, Periolopsis, Actinostilbe, Kutilakesa, and Kutilakesopsis) [1-3]. Currently, the genus has 30 members according to the MycoBank database (http://www.mycobank.org). Sarcopodium is characterized by the formation of sporodochia with curled, sterile, ornamented, dark setae arising from branched, septate conidiophores, and hyaline phialoconidia. The setae are simple, septate, rarely branched, smooth or verruculose, and straight or circinate; they can be rounded in exceptional cases. The conidia are aggregated in slimy masses, hyaline, straight, and cylindrical to ellipsoid [1,3,4]. Species of this genus are found on wood, dead herbaceous stems, human skin, and plant leaves [4-6]. Recently, Sarcopodium sp. was discovered in the deep sea [7].

During the screening of the novel and unreported fungi in the Republic of Korea, the fungal strain YW23-8 was isolated from a soil sample. Based on cultural, morphological, and molecular characteristics, the isolate represents an undescribed species of the genus Sarcopodium. In this study, the isolated fungus is described and illustrated as a novel species.

MATERIALS AND METHODS

Soil sampling and fungal isolation

Strain YW23-8 was isolated from a soil sample collected in Korea (37°16′30.7″N, 128°31′29.9″E). The sample was serially diluted in distilled water, then 100 μL of each dilution was spread on potato dextrose agar (PDA; Difco, Detroit, MI, USA) plates. The fungal colonies were selected and isolated separately based on cultural characteristics after incubation for 2-3 days at 25℃, by sub-culturing under the same conditions.

Morphological characterization

To study the morphology, YW23-8 was cultured on three different media, PDA, malt extract agar (MEA; Difco, Detroit, MI, USA), and oatmeal agar (OA; Difco, Detroit, MI, USA), for 5 days at 25℃ [1]. Following incubation, the colony characteristics including color, shape, and size were recorded. A light microscope was utilized to observe the morphological structure of the strain (BX-50; Olympus, Tokyo, Japan).

Genomic DNA extraction, PCR amplification, and sequencing

Genomic DNA of strain YW23-8 was extracted using a DNA extraction kit (BIOFACT, Daejeon, Korea) according to the manufacturer’s instructions. Molecular identification based on PCR amplification was conducted using the internal transcribed spacer (ITS) regions and partial sequences of the large subunit of the nuclear ribosomal RNA (LSU) gene to determine the genus and species. The primers ITS1F and ITS4 [8,9] were used to amplify the ITS regions, and the LSU gene was amplified using the primer pair V9G/LR5 [10,11]. The PCR conditions for ITS included an initial elongation step for 2 min at 94℃; followed by 35 cycles of 30 s at 94℃, 45 s at 55℃, 90 s at 72℃, and a final elongation step for 5 min at 72℃. The conditions for LSU were 3 min at 94℃; followed by 35 cycles of 35 s at 94℃, 1 min at 49℃, 2 min at 72℃, and finally 5 min at 72℃. The PCR products were purified using EXO-SAP (Thermo Fisher Scientific, Waltham, MA, USA) and sequenced (Solgent, Daejeon, Korea).

Phylogenetic analysis

The generated DNA sequences were compiled and assembled in BioEdit [12] and compared with closely related species retrieved from National Center for Biotechnology Information (NCBI). The ITS and LSU sequences of related taxa were obtained from GenBank (Table 1). These sequences were combined and aligned using Clustal X [13]. A phylogenetic tree based on concatenated ITS and LSU sequences was constructed with MEGA 7 program [14] using the neighbor-joining (NJ) method. A bootstrap analysis with 1,000 replicates was used to calculate the confidence levels of branches [15].

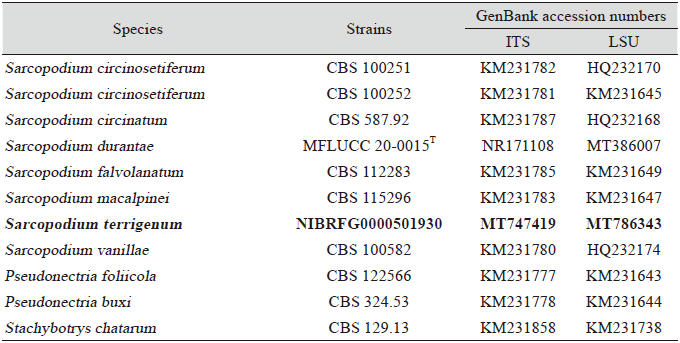

Table 1. GenBank accession numbers of the fungal strains used in the phylogenetic analyses. http://dam.zipot.com:8080/sites/KJOM/images/N0320490203_image/Table_KJOM_49_02_03_T1.png

The strain identified in this study is indicated in bold.

ITS: Internal transcribed spacer; LSU: Large ribosomal subunit

RESULTS AND DISCUSSION

Taxonomy

Sarcopodium terrigenum S.E. Nabil, S.Y. Lee & H.Y. Jung sp. nov. (Fig. 1)

MycoBank: MB839077

Etymology: This refers to the soil, the substrate from which the type strain was isolated.

Typus: The culture was isolated in Korea (37°16′30.7″N, 128°31′29.9″E). The stock culture (NIBRFG0000501930) was deposited at the National Institute of Biological Resources as a metabolically inactive culture.

Cultural and morphological characteristics

YW23-8 was cultured on PDA, OA, and MEA at 25℃ to observe its morphological structure (Fig. 1A-C). The colony on PDA, reaching 65 mm in 15 days, was circular, slightly raised, and curled with a rough surface. The color of the colony was initially yellowish-white, and over time it became darker and brownish-yellow from the center outward, with yellow on the reverse side. The milky white droplets were globular and smooth, and they arose from the ends of the conidiophores (Fig. 1D). The setae were always straight, thin-walled, and septate, with a swollen setal apex forming a light pulp shape end, generally 2.5–3.5 µm and up to 6 µm wide at the apex (Fig. 1F). The conidia aggregated in slimy masses and were spherical to oval, hyaline, smooth, thin-walled, and aseptate, with dimensions of 4.7–7.0×4.5–5.0 µm, similar to those of the closest related species S. circinosetiferum (Fig. 1H).

http://dam.zipot.com:8080/sites/KJOM/images/N0320490203_image/Fig_KJOM_49_02_03_F1.png

Fig. 1. Cultural and morphological characteristics of Sarcopodium terrigenum YW23- 8. A: Colony on potato dextrose agar. B: Colony on oatmeal agar. C: Colony on malt extract agar. D: Milky watery droplets on potato dextrose agar plate. E: Mycelia on potato dextrose agar. F: Setae. G: Conidiophores. H: Conidia. Scale bars: D, E=500 μm; F-H=10 μm.

Note: The species S. macalpinei (260×80 µm) and S. vanilla (150×100 µm) produce conidiomata, which are absent in S. circinosetiferum, S. circinatum, and the novel isolate YW23-8. The species S. circinosetiferum (septate), S. circinatum (0–1 septate), S. macalpinei (1 septate), and S. vanillae (1 septate) produce septate conidia, whereas YW23-8 produces aseptate conidia (Table 2). Sarcopodium circinosetiferum, S. circinatum, S. macalpinei and S. vanillae have different types of conidial structures, but YW23-8 produced spherical to oval conidia (Table 2). Moreover, in contrast to S. circinosetiferum, S. circinatum, S. macalpinei and S. vanilla, YW23-8 produced numerous milky white watery droplets. A comparison with the nearest species of the genus showed that YW23-8 is different due to its conidial structures, the absence of septation in the conidia, and the presence of numerous milky white watery droplets. Thus, the morphology of YW23-8 is significantly different from that of its closest species, the previously described Sarcopodium species.

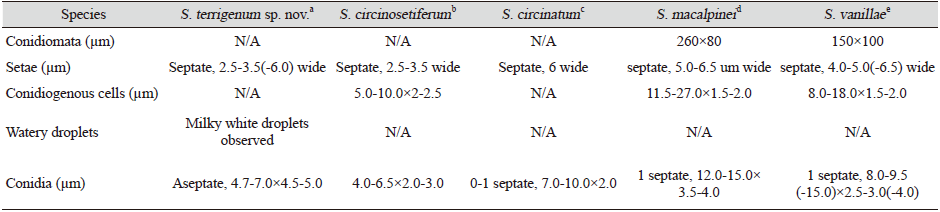

Table 2. Morphological comparison of Sarcopodium terrigenum with the closest species of the genus Sarcopodium. http://dam.zipot.com:8080/sites/KJOM/images/N0320490203_image/Table_KJOM_49_02_03_T2.png

N/A: not available.

a Fungal strain studied in this work, b,c,d,e Data sources for the descriptions [3].

Phylogenetic analysis

The sequences of the ITS regions of YW23-8 showed a similarity of 99.5-100% to those of S. circinosetiferum PSN02 (KT184722) and S. circinosetiferum PIP09 (KT184703). However, YW23-8 shared only 93.5% identity with S. circinosetiferum CBS 100252T (KM231781), which is the type species. Identification of the closest taxonomic relatives using the LSU gene sequence revealed a high similarity of 98–99% between the isolate and S. macalpinei (CBS 128372, CBS 128371), S. flavolanatum (CBS 230.31, CBS 172.25), and S. vanillae (MFLUCC 17-2597). These results clearly indicate that a comparative analysis based on the sequence of one LSU gene or ITS region would not precisely identify the novel fungal strain. Therefore, phylogenetic analysis using concatenated ITS and LSU gene sequences were performed for accurate differentiation. The NJ phylogenetic tree based on the concatenated ITS and LSU gene sequences were clearly demonstrated that the strain S. terrigenum YW23-8 occupied a distinct position among the closest Sarcopodium species (Fig. 2). Accordingly, YW23-8 represents a single, novel, phylogenetically distinct species. Sarcopodium species have been reported in various countries, habitats, and substrates, including S. circinatum (soil, Costa Rica; leaf litter, Brazil), S. circinosetiferum (soil, Argentina), S. flavolanatum (evergreen tree, Theobroma gileri, Ecuador; decaying wood, China), S. macalpinei (evergreen shrub, Viburnum odoratissimum, Hong Kong), and S. vanillae (Anthurium sp., Ecuador) [1]. The most recognized species in the genus, S. araliae, S. circinatum (the genus type species), S. oculorum and S. tortuosum, are relatively common plant pathogens. Moreover, S. oculorum, named after the infection site, was reported to cause corneal ulcers in humans [5]. Thus, according to the phylogenetic analysis and morphological observation, strain YW23-8 is distinct from the previously identified Sarcopodium species. It should be placed in the genus as a novel species for which we propose the name Sarcopodium terrigenum sp. nov. Since comprehensive information is still lacking, further investigation is required to discover the habitats, geographic distribution, and pathogenic potential of this new fungal species.

http://dam.zipot.com:8080/sites/KJOM/images/N0320490203_image/Fig_KJOM_49_02_03_F2.png

Fig. 2. Neighbor-joining phylogenetic tree based on the concatenated internal transcribed spacer regions and the partial sequence of the large subunit (LSU) rRNA gene, showing the phylogenetic position of the novel strain YW23-8 among the closest Sarcopodium species. The numbers above the branches represent the bootstrap values obtained for 1,000 replicates (values <60% not shown). The strain isolated in this study is indicated in bold. Scale bar: 0.005 substitutions per nucleotide position.

ACKNOWLEDGMENTS

This research was supported by Kyungpook National University Development Project Research Fund, 2018

References

1 1. Lombard L, Van der Merwe NA, Groenewald JZ, Crous PW. Generic concepts in Nectriaceae. Stud Mycol 2015;80:189-245.

2 2. Rossman AY, Allen WC, Braun U, Castlebury LA, Chaverri P, Crous PW, Hawksworth DL, Hyde KD, Johnston P, Lombard L, et al. Overlooked competing asexual and sexually typified generic names of Ascomycota with recommendations for their use or protection. IMA Fungus 2016;7:289-308.

3 3. Sutton BC. Sarcopodium and its synonyms. Trans Br Mycol Soc 1981;76:97-102.

4 4. Liu DY, Paterson RRM. Sarcopodium. Molecular detection of human fungal pathogens. 1st ed. London: Taylor and Francis Group; 2011. p. 485-8.

5 5. Guarro J, Höfling-Lima AL, Gené J, De Freitas D, Godoy P, Zorat-Yu ML, Zaror L, Fischman O. Corneal ulcer caused by the new fungal species Sarcopodium oculorum. J Clin Microbiol 2002;40:3071-5.

6 6. Raj T, George K. A new species of Sarcopodium on coffee from India. Curr Sci 1960;29:192-3.

7 7. Matsuo H, Nonaka K, Nagano Y, Yabuki A, Fujikura K, Takahashi Y, Ōmura S, Nakashima T. New metabolites, sarcopodinols A and B, isolated from deep-sea derived fungal strain Sarcopodium sp. FKJ-0025. Biosci Biotechnol Biochem 2018;27:1-4.

8 8. Gardes M, Bruns TD. ITS primers with enhanced specificity for basidiomycetes-application to the identification of mycorrhizae and rusts. Mol Ecol 1993;2:113-8.

9 9. White TJ, Bruns T, Lee S, Taylor JW. Amplification and direct sequencing of fungal ribosomal RNA genes for phylogenetics. PCR protocols: A guide to methods and applications. In Innis MA, Gelfand DH, Sninsky JJ, White TJ, editors. San Diego: Academic Press; 1990. p. 315-22.

10 10. De Hoog GS, van den Ende AHGG. Molecular diagnostics of clinical strains of filamentous basidiomycetes. Mycoses 1998;41:183-9.

11 11. Vilgalys R, Hester M. Rapid genetic identification and mapping of enzymatically amplified ribosomal DNA from several Cryptococcus species. J Bacteriol 1990;172:4238-46.

12 12. Hall TA. BioEdit: A user-friendly biological sequence alignment editor and analysis program for Windows 95/98/NT. Nucleic Acids Symp Ser 1999;41:95-8.

13 13. Thompson JD, Gibson TJ, Plewniak F, Jeanmougin F, Higgins DG. The Clustal X windows interface: Flexible strategies for multiple sequence alignment aided by quality analysis tools. Nucleic Acids Res 1997;24:4876-82.

14 14. Kumar S, Stecher G, Tamura K. MEGA7: Molecular evolutionary genetics analysis version 7.0 for bigger datasets. Mol Biol Evol 2016;33:1870-4.

15 15. Felsenstein J. Confidence limit on phylogenies: An approach using the bootstrap. Evolution 1985;39:783-91.
